H97M PRO LGA 1150 Motherboard for Intel 4th 5th gen Core i3 i5 i7/Pentium/Xeon Processor (Micro ATX, 4*DDR3 Slots, SATA 3.0, USB 3.0, NVME M.2, PCIe 3.0)
$99.99
Price: $99.99
(as of Jan 03, 2025 13:23:39 UTC – Details)
Product Description

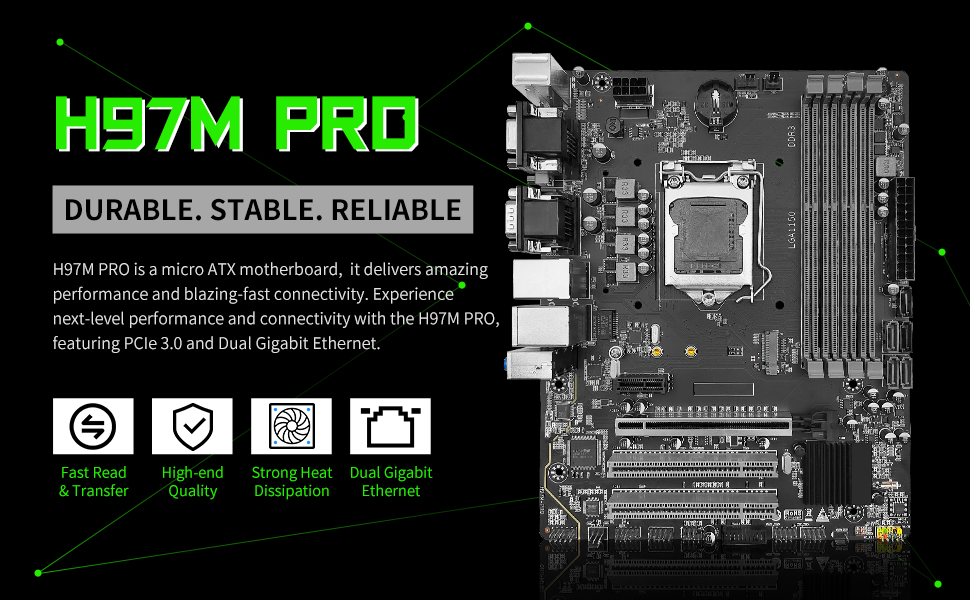

SHANGZHAOYUAN H97M PRO Gaming Motherboard delivers rock-solid performance with unwavering gaming stability.

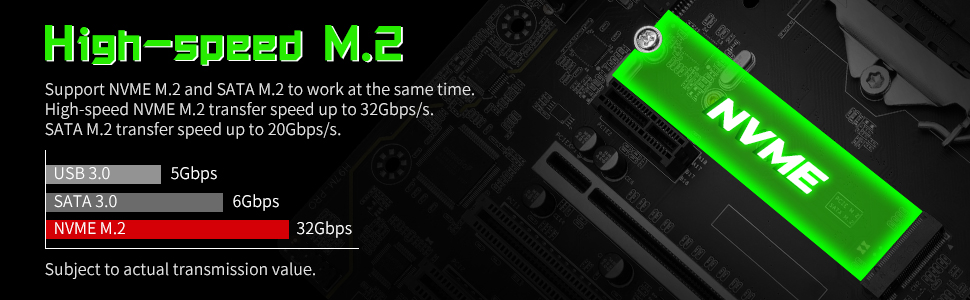

Every motherboard has undergone rigorous testing, rejecting defective and used products.With exquisite quality and craftsmanship, meet your office, entertainment, and gaming needs.Optimized circuit layout and fully separated memory circuit design ensure strong stability.With a unique audio dividing line to protect the sound card from signal interference.The new aesthetic design, equips with a comprehensive thermal solution to keep it cool under a heavy workload.M.2 Slot, data-transfer speed up to 32Gbps. It‘s a good choice for an operating system or application drive, providing fast access to data.
Note: This user manual is not included in the package, if you need it, please download it from the product description page or let us help you get it.

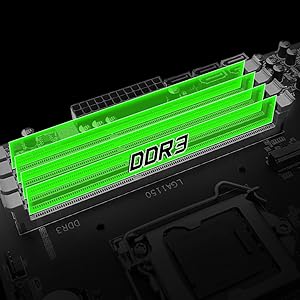

DDR3 Memory Slots
Supports dual-channel DDR3 memory up to 32GB(8GB*4), 1333/1600/1866/2133MHz effective frequency.

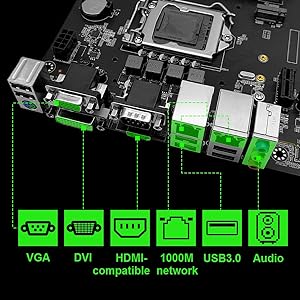

I/O Interfaces
Gigabit network*2, Realtek 8111 Gigabit network card, network double acceleration.
HDMI-compatible, VGA, DVI, USB 3.0*2,USB 2.0*4, COM*1, P/S*1, Audio*1(Mic-in, Line-out, Line-in).

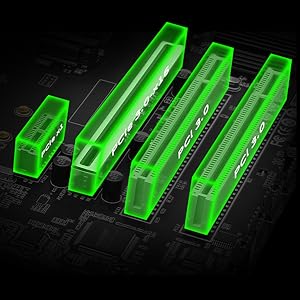

PCIe & PCI Slots
Equipped with 1*PCIe x16 3.0, 1*PCIe x1 3.0, 2*PCI, to achieve higher compatibility.

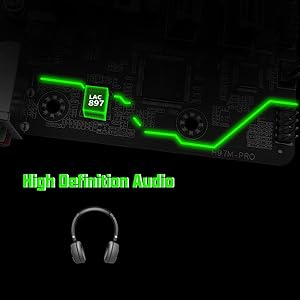

Realtek ALC897 HD Audio
This H97 gaming motherboard has a unique audio dividing line to protect the sound card from signal interference.
Strong Heat Dissipation
Metal Aluminum Material provides effective heat dissipation, to provide effective heat dissipation for the chipset.

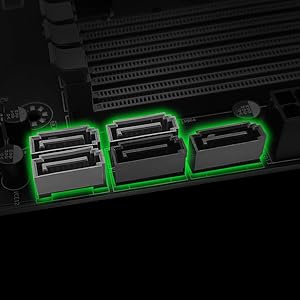

SATA Interfaces
With 3*SATA 3.0 and 2*SATA 2.0, the hard drive reads and writes faster, maximum transfer speeds up to 6Gbp/s.
H97M PRO LGA 1150 Motherboard Specifications
Main Chipset Intel H97 Chipset Structure Micro ATX CPU Socket LGA 1150 Memory Slot 4*DDR3 Maximum Memory 32GB(8GB*4) PCIe Slot 1*PCIe X16(PCI-E 3.0); 1*PCIe X1 PCI Slot 2*PCI Storage Interface 3*SATA 3.0; 2*SATA 2.0; M.2 NVME USB Interface 3*USB 3.0; 6*USB 2.0 Video Interface HDMI-compatible; VGA; DVI Integrated Video Card YES (Requires CPU to support integrated display) Onboard Network Card 2*Gigabit LAN Interface Power Supply 4-phase Power Supply Power Connector 24PIN+8PIN FAN Interface 1*4PIN; 2*3PIN Motherboard Size 243*193MM
LGA 1150 Socket Motherboard: This gaming motherboard supports 4th/5th Gen Intel Core i7/i5/i3/Pentium/Celeron/E3 series processor with LGA 1150 CPU socket. (e.g. core i3 4130, i5 4460, i5-4570, i5 4590, etc.)
Maximum Memory 32GB: The Intel m-atx motherboard supports Dual Channel Non-ECC DDR3, 4 DIMMs, support 1333/1600/1866/2133MHz
Best Gaming Connectivity: The Intel LGA 1150 motherboard for Intel i3 i5 i7 supports HDMI-compatible and DVI, VGA, featuring M. 2 slots (NVMe SSD), PCIe 3.0 X16, USB 3.0, SATA 3.0, and 2 gigabit network interfaces, bringing an extremely fast and smooth online gaming network
Stable Power Supply: 4-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the computer motherboard placa madre is equipped with 24+8 pin power interface (at least 500w brand power supply)
High Performance Mainboard: The lga 1150 DDR3 motherboard is equipped with H97 chipset. And with Heat dissipation armor protection for strong heat dissipation, to ensure stable bus communication
Package Includes: 1* H97M PRO motherboard, 1*SATA cable, 1*I/0 shield. IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on Amazon to get it. And the motherboard does not include a CR2032 battery, please purchase one yourself
Warm Tips: After the installation of the motherboard, if no display, no boot, no screen, no network card, no sound card, etc., it is recommended to restore factory settings, reset the CMOS, or use an eraser to wipe the metal fingers on the memory, CPU and graphics card. It is recommend driver download: Driver Talent. or use Win 10 system, it can help you solve all the driver problems.
