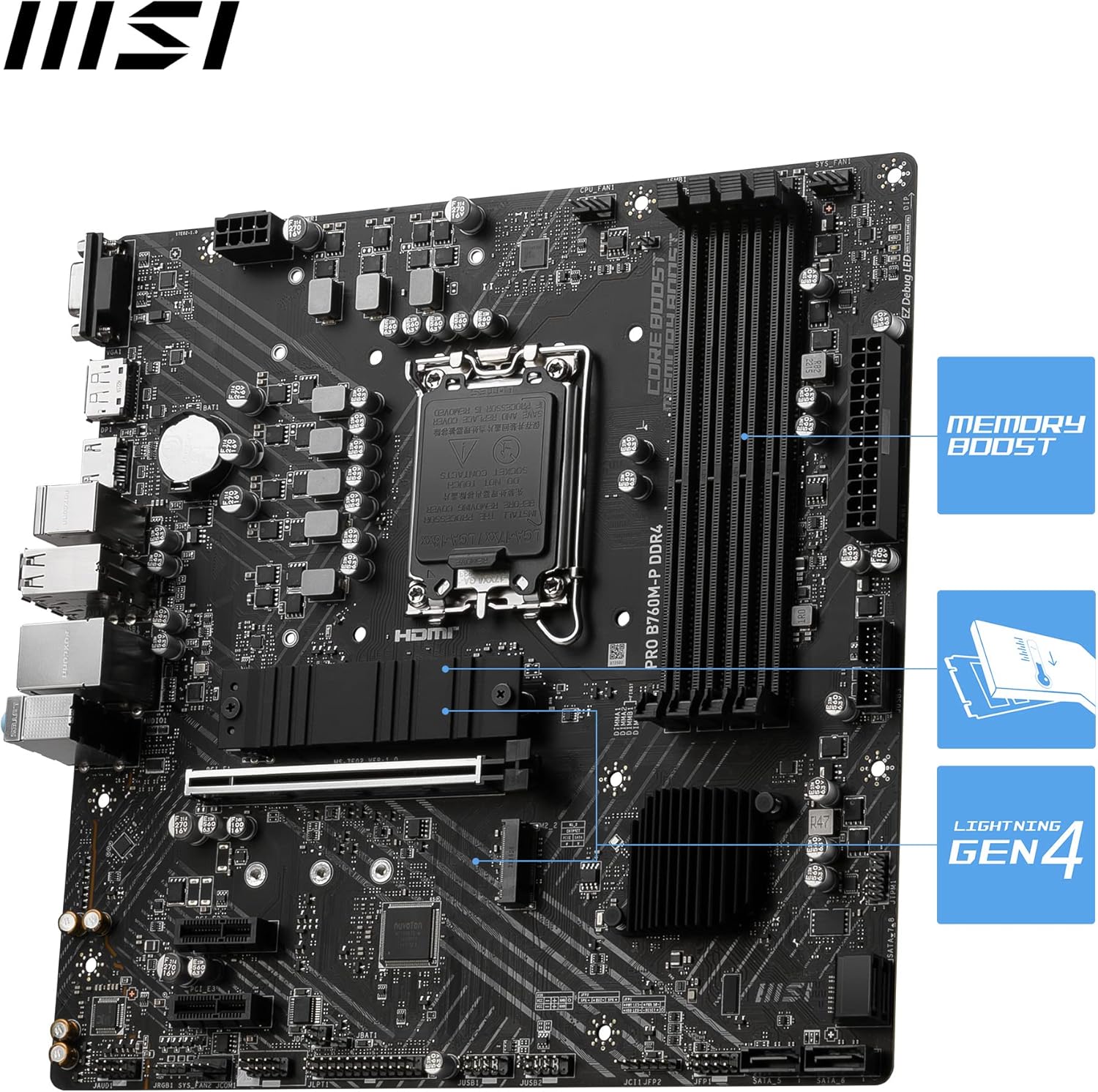

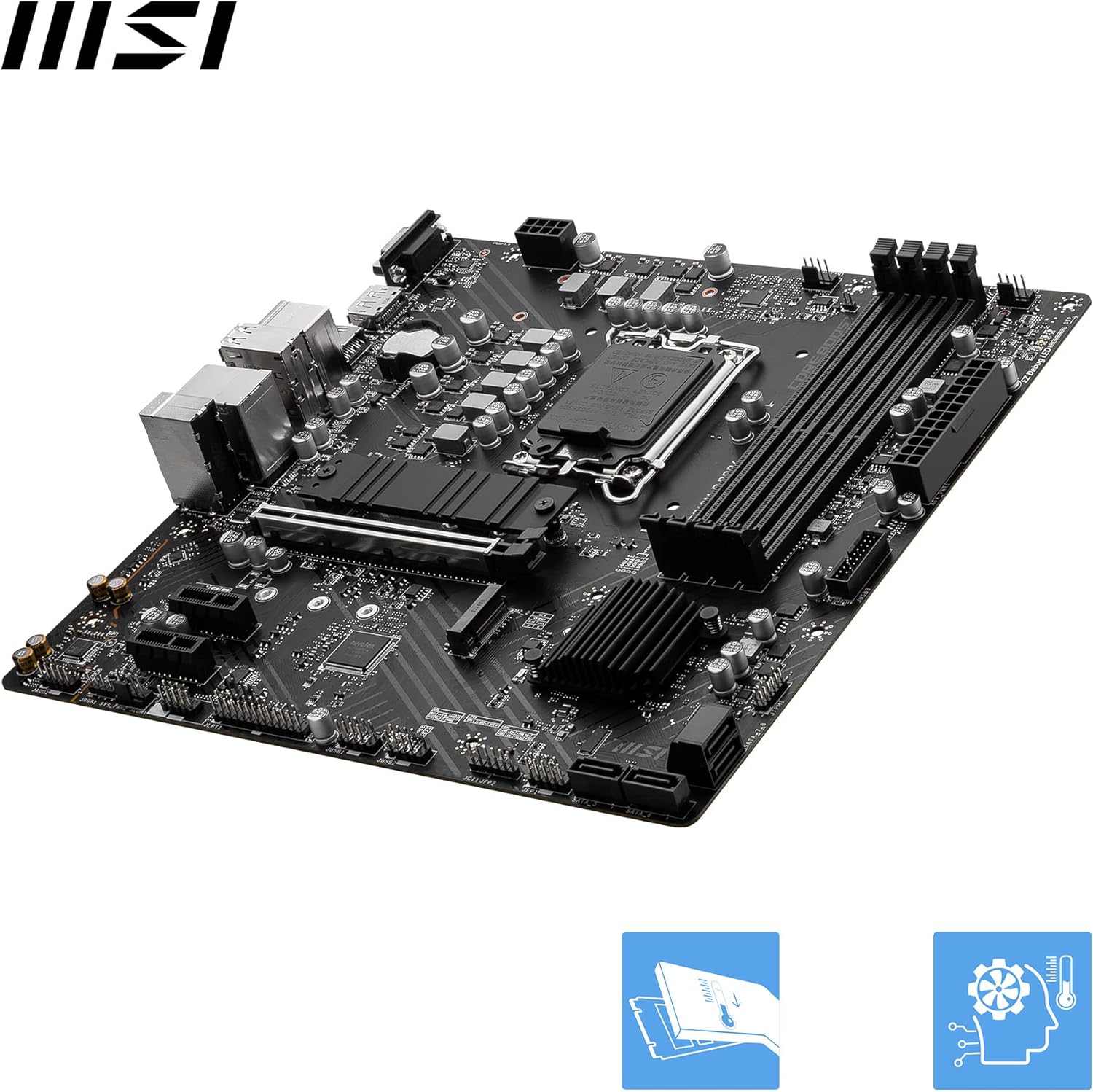

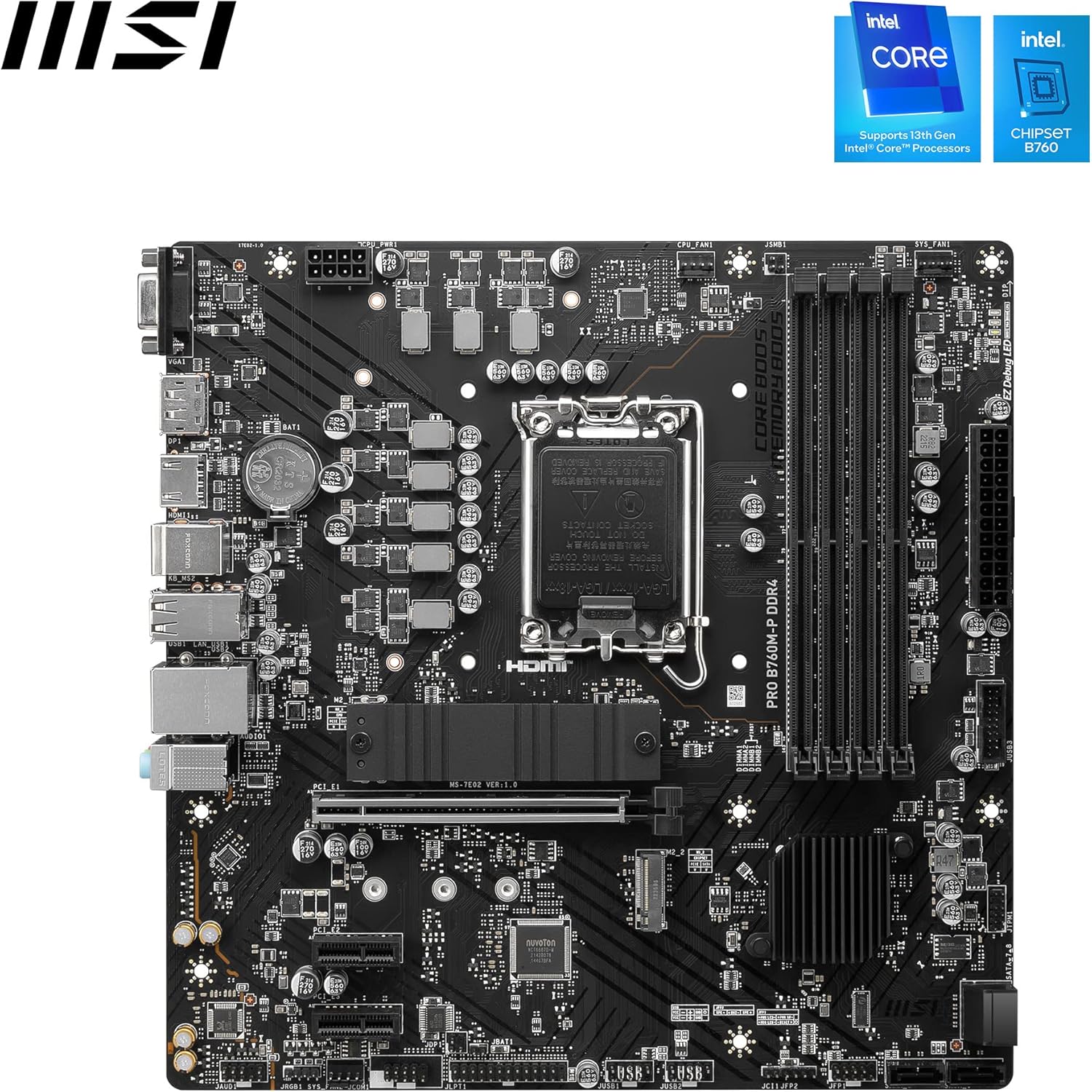

MSI PRO B760M-P DDR4 mATX Motherboard, 4X DDR4~128GB, 1x PCI-E x 16, 2X PCI-E x 1, 2X M.2, 4X SATA, 1x USB 3.2, 4X USB 2.0, 1x USB-C
$105.63
Price: $105.63
(as of Dec 25, 2024 19:38:33 UTC – Details)

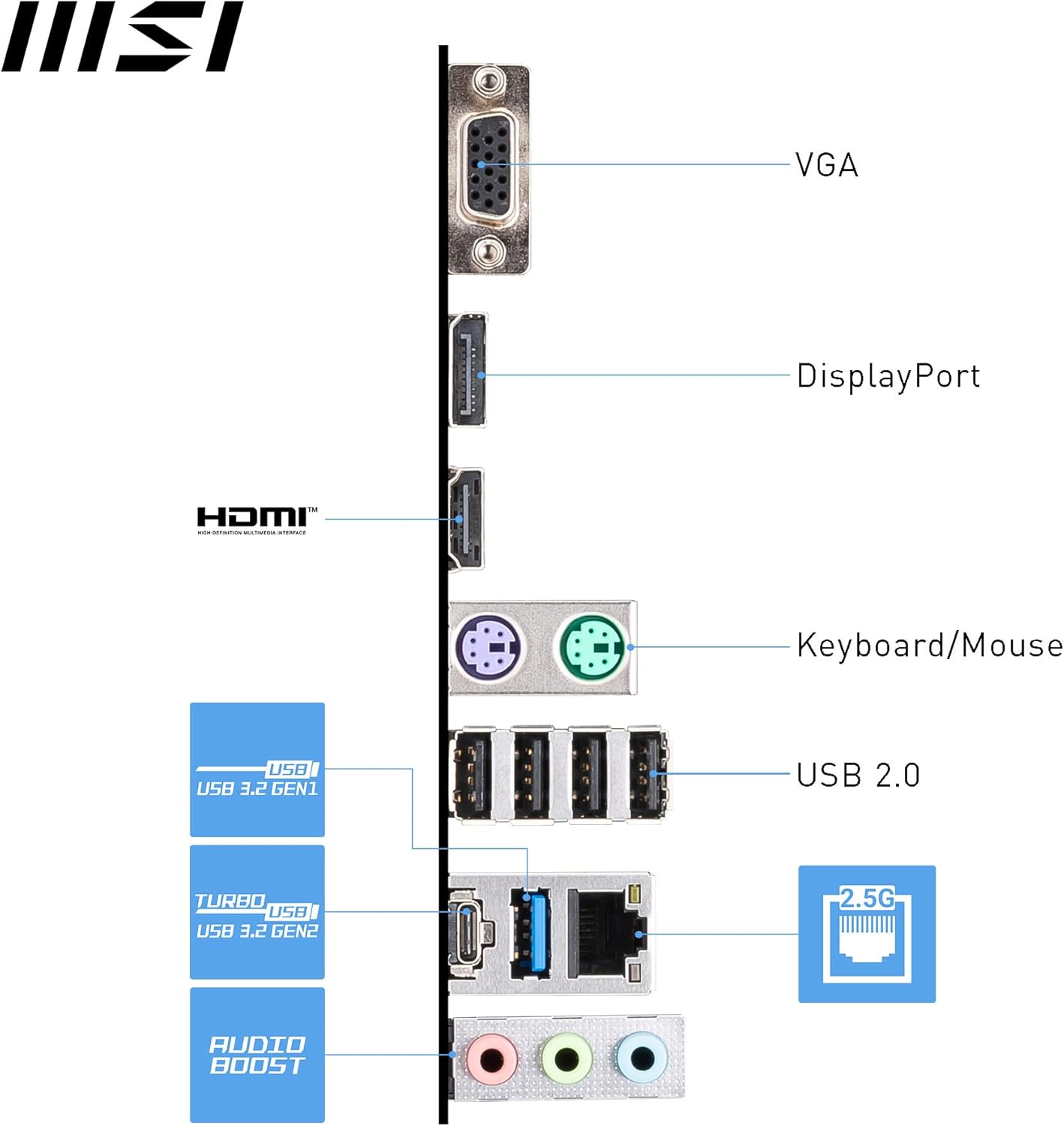

MSI PRO B760M-P DDR4 mATX Motherboard, 4x DDR4~128GB, 1x PCI-E x 16, 2x PCI-E x 1, 2x M.2, 4x SATA, 1x USB 3.2 , 4x USB 2.0, 1x USB-C Specifications: CHIPSET INTEL B760 CPU SUPPORT Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) ONBOARD GRAPHICS 1x HDMI 1x DisplayPort 1x VGA Support HDMI 1.4, maximum resolution of 4K 30Hz* Support DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz EXPANSION SLOT 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) STORAGE 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) INTERNAL I/O 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit PCB DIMENSION mATX 243.84mmx243.84mm
5 reviews for MSI PRO B760M-P DDR4 mATX Motherboard, 4X DDR4~128GB, 1x PCI-E x 16, 2X PCI-E x 1, 2X M.2, 4X SATA, 1x USB 3.2, 4X USB 2.0, 1x USB-C
Add a review
Related Products
$105.63
Edeilson –
Muito bom estou utilizando em I5 12400f.
Jose Canul –
La placa está funcionando muy bien con el i5 12600kf y por buen precio.Muy recomendado está placa
Luis G.R. –
Me ha gustado todo, es más he comprado 2 placas base iguales y montadas sin problemas.
Rasmus –
Bra moderkort till ett simpelt datorbygge med Intel 12100f och 16 GB ram 3200mhz. Hade wifi/bluetooth adapter sedan innan så att moderkortet saknade det spelar ingen större roll
Alexander Aspman –
Think it was broken and returned and then sold againIt wasnt plumed the box and no plastic of the carten of the motherboardIt broked two monthâs in how the hell do i return it
