SHANGZHAOYUAN H61C ITX Motheboard LGA 1155 for Intel 2th/3th Gen CPUs, DDR3 Desktop RAM MAX 32GB Memory, PCI-E 2.0, SATA(NGFF)/NVME M.2 Slot, SATA 3Gb/s, USB 2.0, HDMI-Compatible/VGA
$39.99
Price: $39.99
(as of Jan 04, 2025 13:17:48 UTC – Details)
H61C Motherboard Specification:
LGA1155 Motherboards Chipset: Intel H61
CPU Socket: LGA 1155
RAM Slot: 2* DDR3 DIMM (MAX 32GB)
Support Memory Type: DDR3 1333/1600/1866MHz Desktop RAM Memory
Memory Channel: Dual Channels
M.2 Slot: Supports SATA(NGFF)/NVME M.2, if your using a NVME drive then make sure to change the 4 jumpers on the motherboard just below the nvme drive.
PCIe Slot: PCIe 2.0 X16; PCIe 2.0 X1
SATA Interface: 3* SATA 2.0
USB Port: 8* USB 2.0

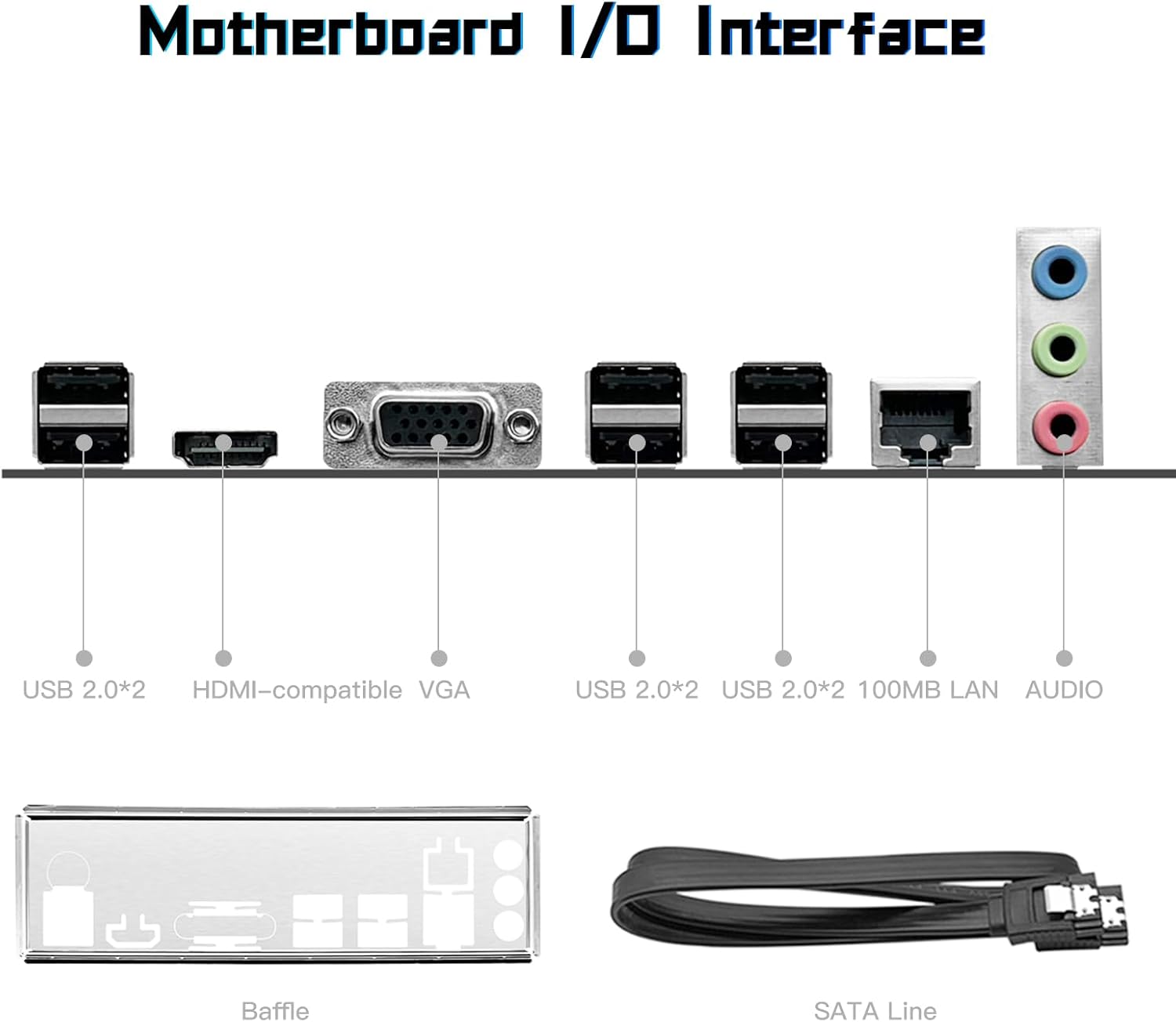

Display Interface: 1* HDMI; 1* VGA
Power Connector: 24 + 4Pin
FAN Interface: 4Pin; 3Pin
Other Interfaces: 3* Audio jacks
Network: Realtek 100Mbps RJ45 Ethernet
Sound Card: ALC 661, 2.1 Channels
Quick Startup Button: F7
Size: 190mm*170mm
Form Factor: Approx. ITX and fit for small-form factor (SFF) or Micro ATX case
Don’t have the intelligent control of the CPU or Chassis fan in BIOS or software
Packing List:
JUXIESHI H61C Motherboard *1
SATA Cable *1
I/O Shield *1
Note: The motherboard box was packaged random, please follow the mainboard page’s details as the the actual parameters.
Intel LGA 1155 Socket: Supprt Intel core 2nd & 3rd Gen full LGA 1155 pin series processors, Like i3-2100, i5-2400, i7-2600K, i3-3220, i5-3470, i7-3770K, and Celeron G1620, Xeon E3 1230 V2, etc
Dual Channels DDR3: LGA 1155 Motherboard comes with dual channels DDR3 desktop RAM up to 32 GB (1333/1600/1866MHz)
Stable Working & Game Connectivity: PCIe 2.0-ready, SATA/NVME M.2 slots, 100Mbps LAN port, USB 2.0, SATA 2.0, plus HDMI-compatible & VGA output; and this pc motherboard fastest speed of NVME M.2 slot (PCIe 2.0 x4) is up to 1535M/S, if your using a NVME drive then make sure to change the 4 jumpers on the motherboard just below the nvme drive
Network & Sound Card: The itx motherboard has Realtek 100Mbps LAN, Realtek ALC661 Audio Codec, and 2.1 Channels that can provide studio-grade sound quality for immersive working, gaming and Study experiences
Strong PCB and Power: Six-layer itx motherboard design, with two-layer Copper; 4PIN+24PIN DC power supply interface, using an all-solid capacitor, optimized power circuit layouts allow for precise and steady current delivery to the intel CPU, Don’t have the intelligent control of the CPU or Chassis fan in BIOS or software
PC DIY Friendly: The ITX Mobo is handy in a small itx case, a pre-mount I/O shield and a SATA cable come with packing. Motherboard box was packaged random, please follow the mainboard page’s details as the the actual parameters. The motherboard user manual is not included with the packing, please check in ” Product guides and documents” if you need it
Kindly: If the 1155 motherboard is DOA, can’t boot, and has other issues, let us know on Amazon for help, please. The Driver Talent/DriveTheLife or the Windows 10 system are recommended, which will help you solve all the driver problems
6 reviews for SHANGZHAOYUAN H61C ITX Motheboard LGA 1155 for Intel 2th/3th Gen CPUs, DDR3 Desktop RAM MAX 32GB Memory, PCI-E 2.0, SATA(NGFF)/NVME M.2 Slot, SATA 3Gb/s, USB 2.0, HDMI-Compatible/VGA
Add a review
Related Products
$39.99
Amazon Customer –
works as intended
Great little motherboard. works as intended. make sure that you set the jumpers if your using a nvme drive. i have no complaints with this board at all.
Kindle Customer –
?
Boots up and then crashes when entering win splash screen.
Will –
Does what it is used for
I wish I could find the drivers or any info at all for this motherboard. Works out of the box though.
James B. –
Surprisingly zippy.
Yes, it is an older socket, but if you use the M.2 socket in conjunction with an I7-3770, it is a nice performer for modest cost.
Charles Smith –
Works Great!
I was a little worried with the price and brand. But it was all good. No issues at all.
Fernando Pérez –
Mala calidad
Este producto, es una perdida total de la inversión, ya que no tienes buen respaldo ni garantÃa, no recomiendo la compra de este producto.
